Wiring diagram
Instructions for wiring lightbulbs to dimmers:

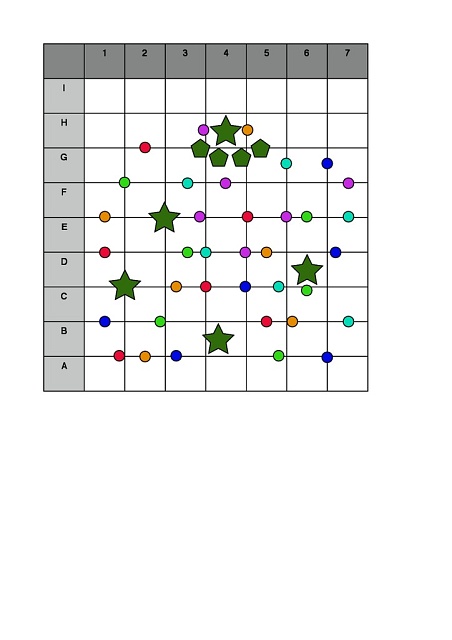

-Rig the poly prop rope grid as per the diag
-Mark with tape the positions of each bulb on the poly prop and mark with their colour code
-Run the cabling each set of 6 on a colour runs into a central connection box and then to the wall and down to dimmer strip
-All cables initially run down to waist height
-Add rope / chain to flex's
-Attach lamp holders and bulbs
-Attach dimmers and plugs and test
-Adjust height of bulbs as required and peg + tape them to the poly prop when happy
-Make adjustments to height once band are in and we can finalise angles
